Concrete Reclaimer TF Series

Product Introduction

The concrete reclaimer is a compact system for cleaning, separating and dewatering concrete residues and discharging sand and aggregate separately. Our concrete recycling system guarantees perfect sand and aggregate purification with less than 0.5% cement remaining. Sand, aggregate and concrete/water mixture can be reused without problems.

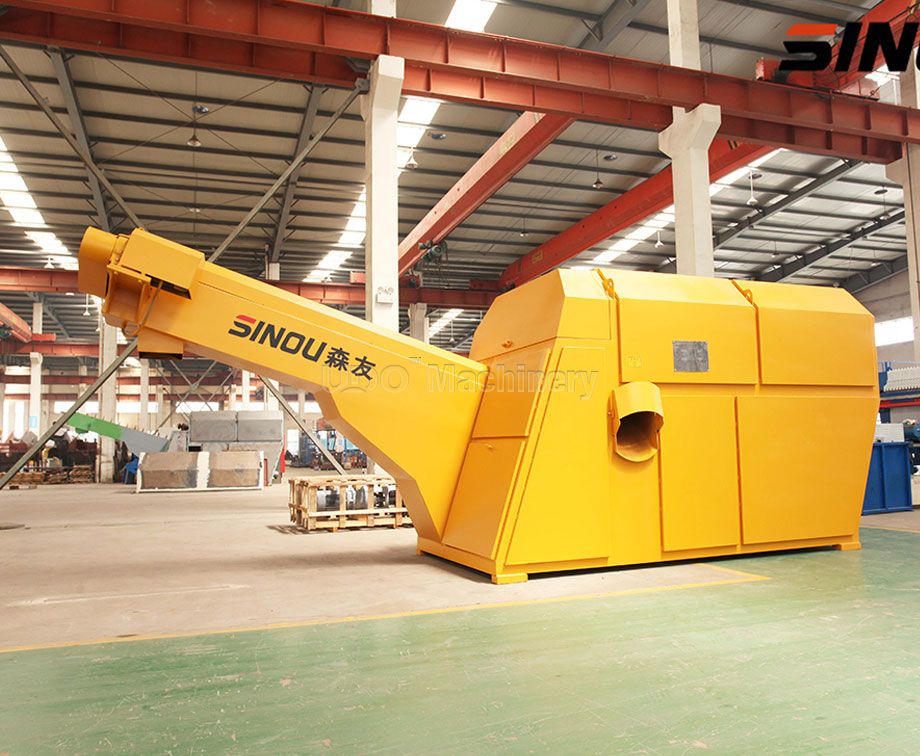

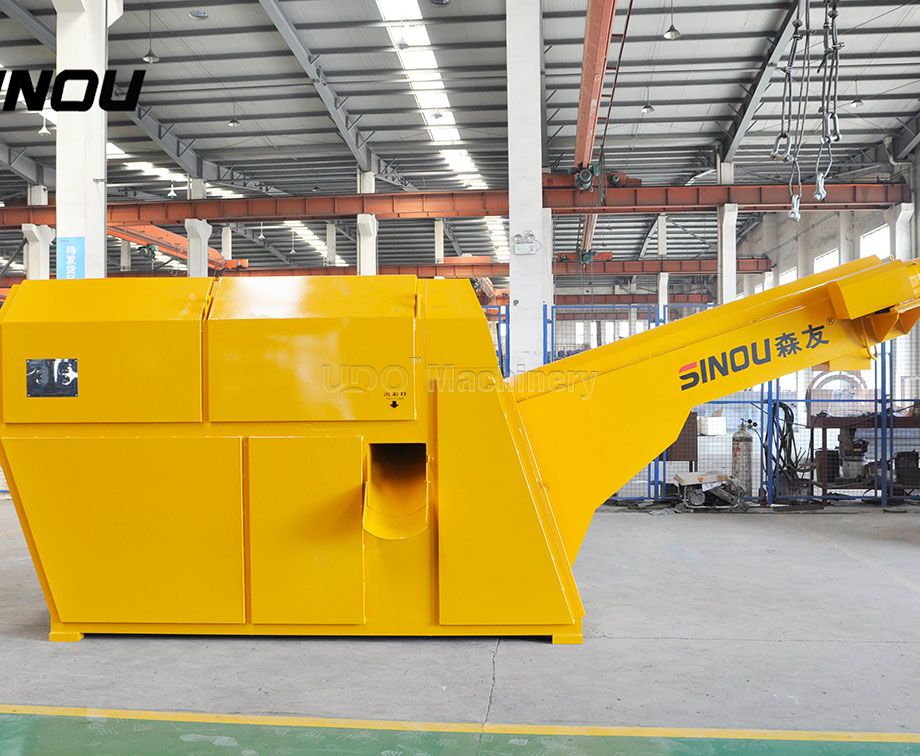

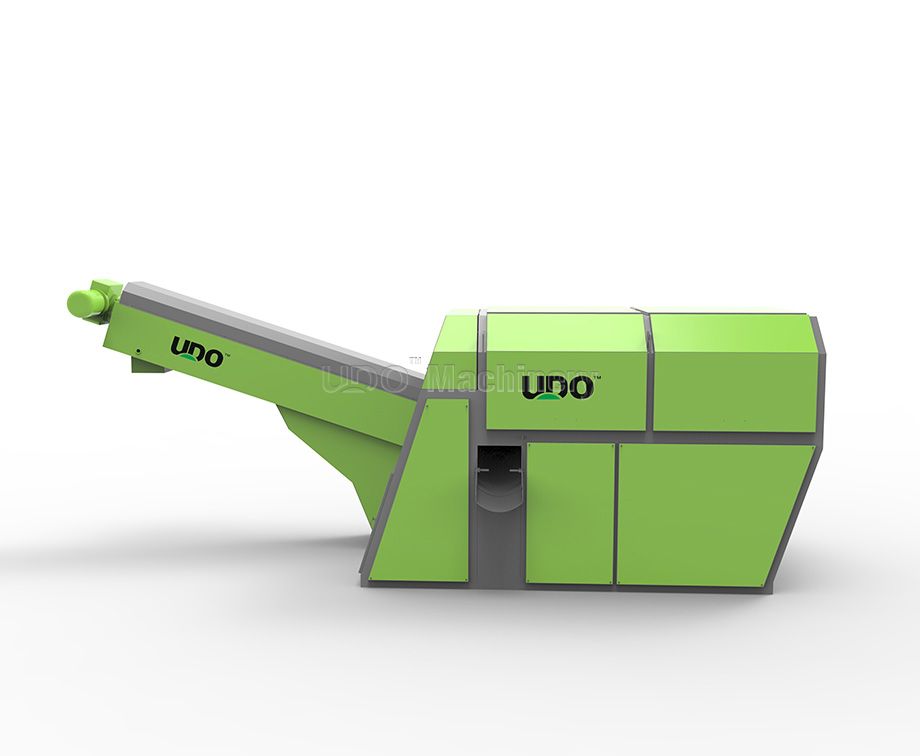

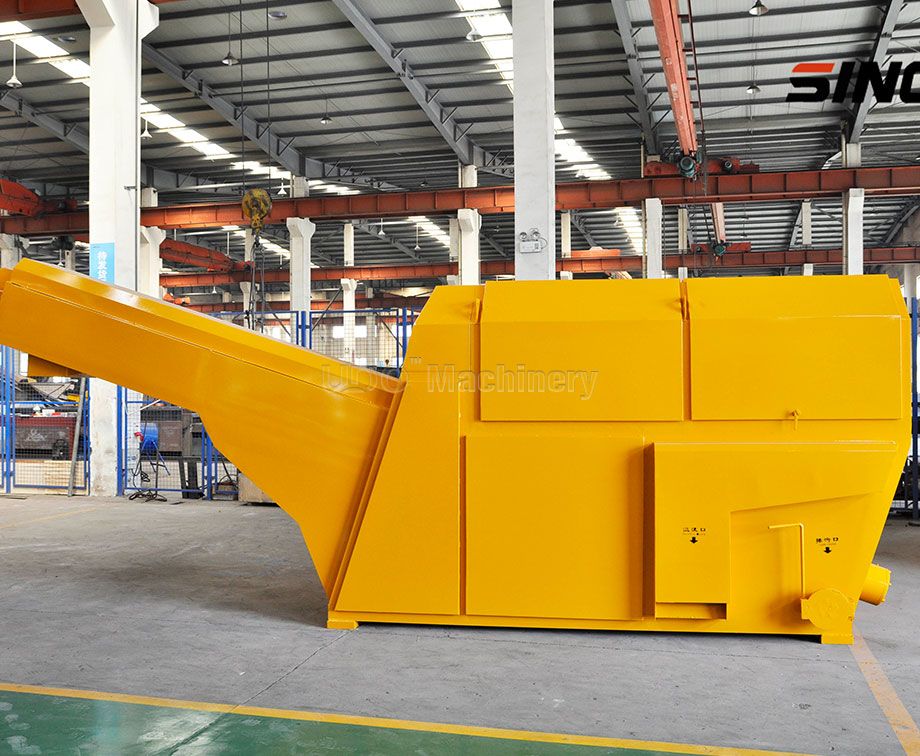

TF Concrete Reclaimer is composed of one sand screw and one screen drum so the sand and stones can be separated simultaneously from sand outlet and stone outlet.

Each model of TF Concrete Reclaimer has 2 directions and the hopper could be designed flexible, TF Concrete Reclaimer is available for cleaning 1-3 trucks at the same time.


Advantages

1)Low investment & High refund

2)The recycled sand contains quite a little water

3)Simple operation

4)The screen hole isn't blocked by stone-out system

5)Heavy duty design with a long service life

Product Parameters

ModelTF100TF125TF140
(mm)Dia.of Rotary Screen100012501400
(mm) Dia.of Sand Screw480480580
(m3/h) Screening Capacity101525
(mm) Stone Size> φ 5> φ 5> φ 5
(mm) Sand Size< φ 5< φ 5< φ 5
(kw) Rotary Screen Power45.57.5
(kw) Sand Screw Power445.5
(mm)Overall Size6260*1970*24807180*2060*26507380*2300*2850
(t)Set Weight567
No. of Mixer Trucks<30<45<65
No. of Washout Stinger1-21-21-3
Electric Control SystemPLC Auto ControlPLC Auto ControlPLC Auto Control
