Embedded Truck Washing System TXE5417

Product Introduction

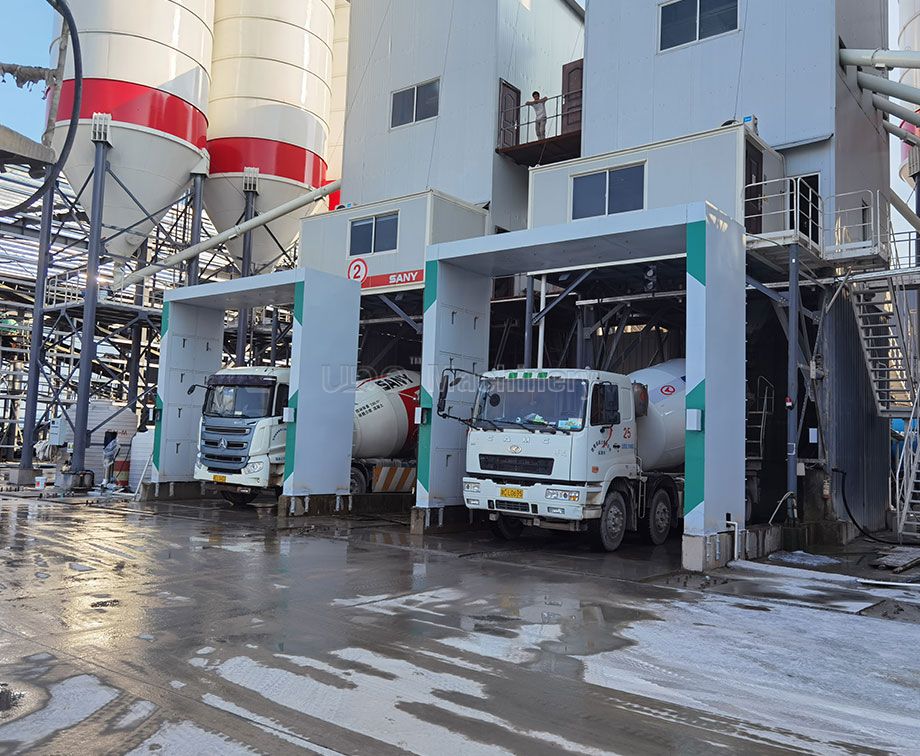

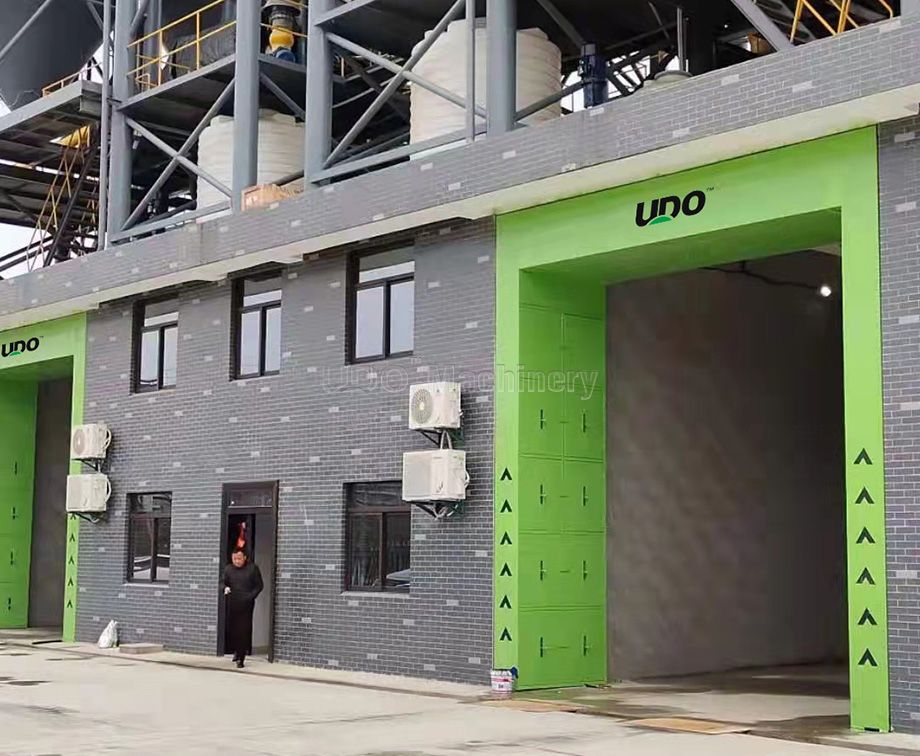

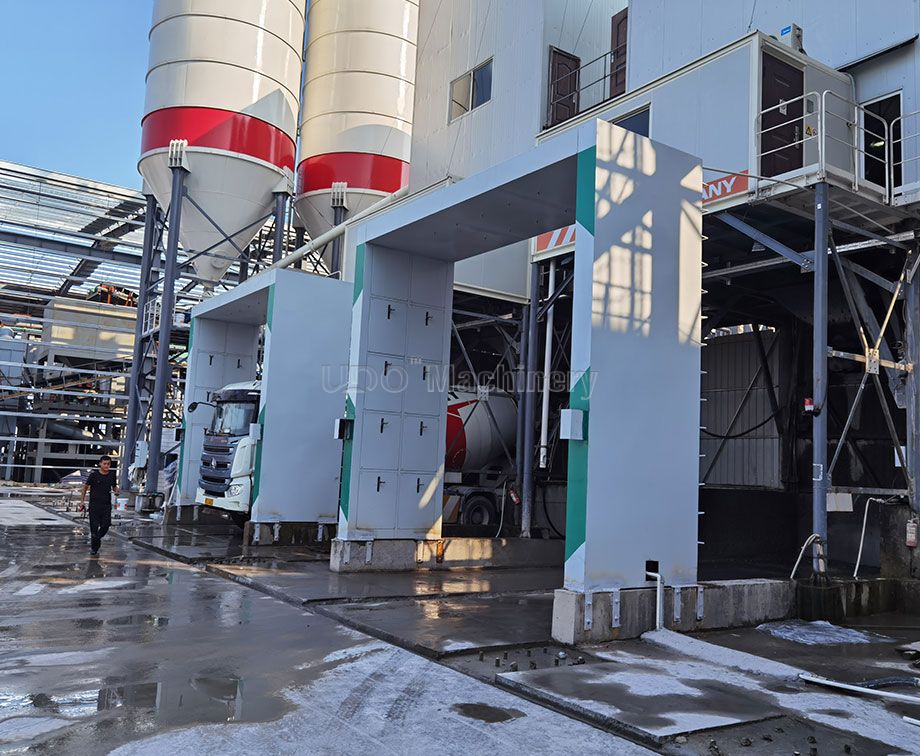

TXE Embedded Truck Washing System is specially developed by UDO for compact batching plants. The system adopts a gantry structure and is installed at the entrance of the unloading port without occupying additional space in the plant. The side of the system adopts a rocking waterjet structure, which can be used for washing the whole vehicle. The top is equipped with a top spray and the ground is equipped with a chassis washing. The lower hopper flushing is installed on the mixer truck. The whole system adopts PLC automatic control, simple operation and powerful function.


Advantages

1. Save space, the system is installed at the feeding entrance directly.

2. Save time, the cleaning operation can be completed during loading work.

3. All-round cleaning, equipped with top spray, side spray, chassis washing, and hopper washing.


Product Parameters

Installation Size(mm)1800(L)×5400(W)×5000(H)
Equipment Size(mm)1700(L)×5400(W)×5000(H)The size can be customized
Truck Size(mm)L(no limit) ×3000(W)×4500(H)
Passing ModeVehicle-through
Control ModeStart mode selection:
1. The bell signal of the main building;
2. Infrared sensor switch;
3. Wireless remote control key, one for each car.
Nozzle TypeSide: Rotating, Top: Fixed
Main PumpBrandSouth Pump
ModelCDMF15-16FSWSC
Power15KW
Head189m
Max. flow15m3/h
Quantity1set/line
